TI - 23 DIAMOND IN A TRIANGLE

Key Elements:

• top of triangel (twice!) on the same vertical line as top and bottom corner of diamond
• triangel and diamond in the right relative proportions

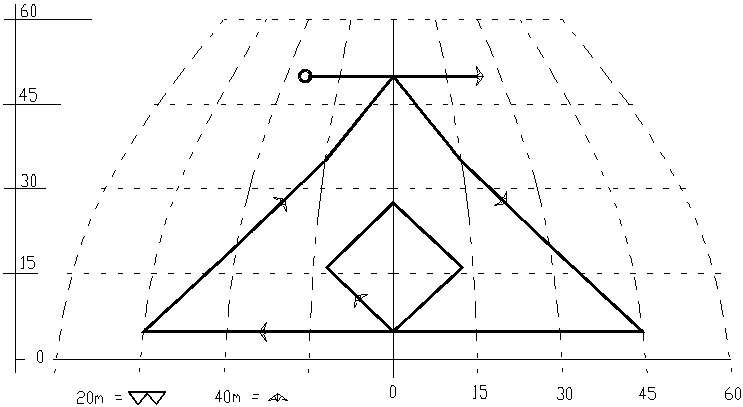

Description:

• "IN" call:
  at <20^50, flying horizontally to center window.
• At center window a 45° left sharp turn is made. Flying a straight line until approximately >45^5. A sharp 135° turn into a horizontal line at about ^5.
  In center window a diamond is flown with sides of 15° (top of diamond is approximately at ^25) After turning at 0^5 the second halve of the horizontal line is flown. The triangel is finished by the "top"turn at the same spot as the first one.
• "OUT" call:
  after about 15° horizontal flight at >25^50.

[]

last changes: march 1, 1999
